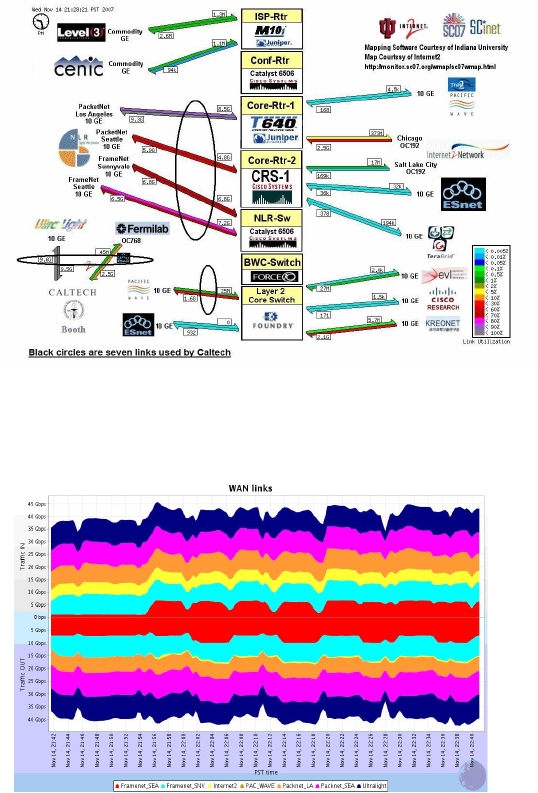

Figure 79 Snapshot of the SCINet network weathermap showing 9.6 Gbps on UL Wave,

along with 6 other links in circle, performing disk-to-disk data exchange between SC07 and

Caltech.

Figure 80 shows data rate of 80+ Gbps sustained for hours across the six utilized waves using

FDT and FAST TCP for disk-to-disk data transfers.

Figure 80 MonALISA snapshot showing 80+Gbps sustained disk-to-disk data exchange

129
